3D Printed Gear for Bachmann Split Chassis Locomotives

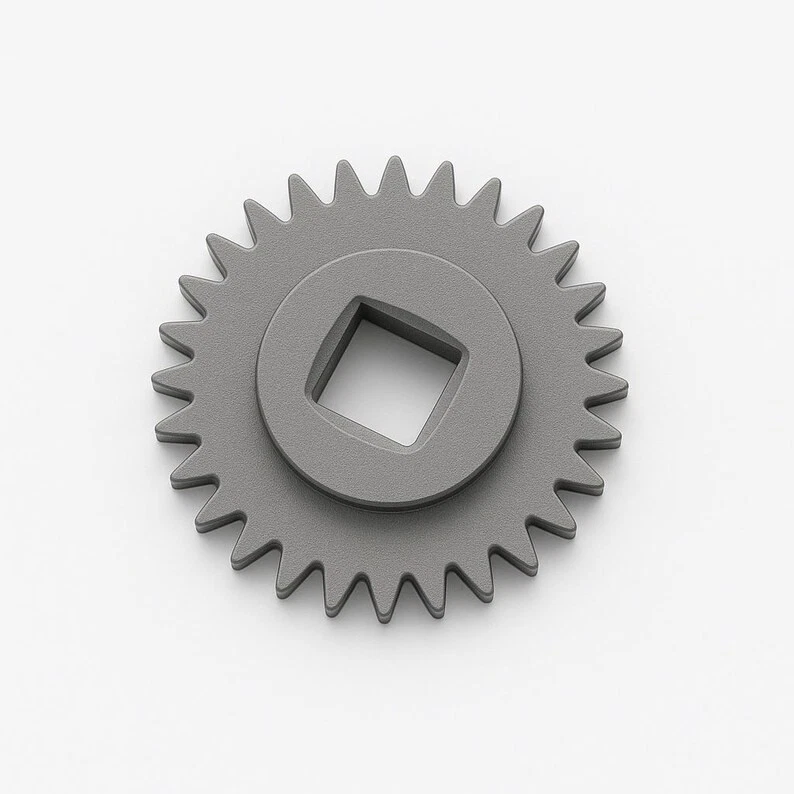

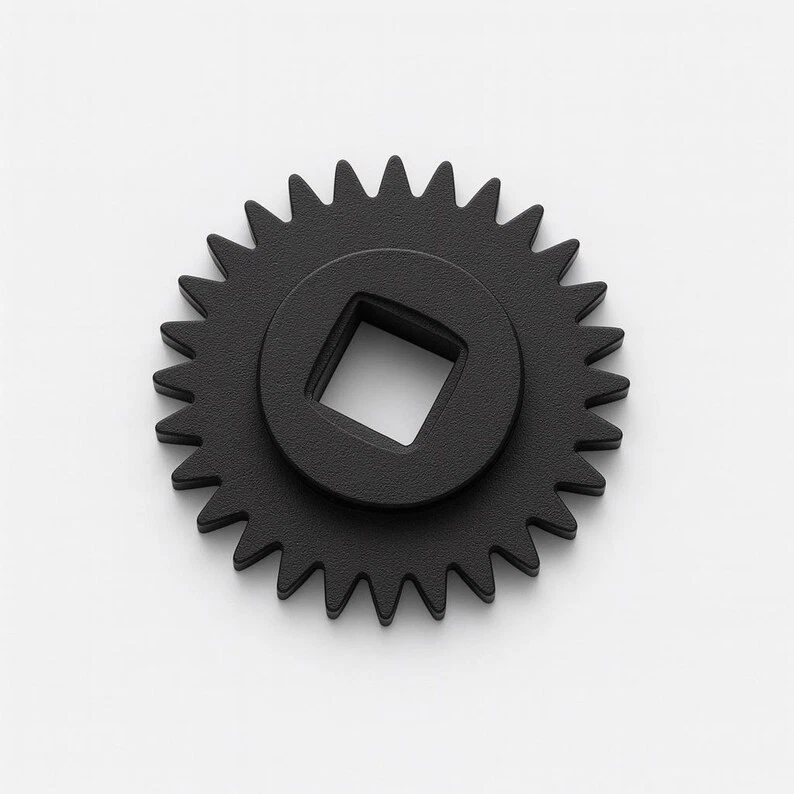

Note: 1 Gear (as shown in the photos)
Improved Resin Formula – Our latest gears are now stronger, more durable, and less brittle for enhanced performance and longevity.
This 3D printed replacement gear set is designed for Bachmann split chassis locomotives featuring square axle location holes. Condition: New.
Important Notice:
Do not order unless you have the necessary skills to fit this item. We offer a professional fitting service with return postage included—please check our other listings for details.
Enhanced Design for Better Performance:
We have re-engineered the tooth geometry to overcome certain 3D printing limitations. This improvement ensures a smoother mesh with the worm gear, leading to better running and improved reliability.
Precision Reverse Engineering:
These parts have been reverse-engineered from discontinued Bachmann originals and are resin 3D printed in the UK. Each set includes:
1 Gear (as shown in the photos)
Fitting Requirements:
To correctly assemble these gears, you will need:
A wheel back-to-back gauge to ensure proper wheel spacing.
Knowledge of wheel quartering, which is essential for correct piston and connecting rod operation.
If you’re unfamiliar with these techniques or lack the required tools, we strongly recommend seeking assistance from a competent person.
Compatibility:
These gears were used in various Bachmann split chassis steam locomotives, including:
V1, A4, and 43xx Mogul
Plus, several others not listed
To confirm compatibility, check your locomotive’s final drive gear:
If your centre axle pin is square and your final drive gear is 14.7mm in diameter with 28 teeth, this set will fit.
Some smaller locomotives have a different-sized final drive gear, which this set will not fit.
If your final drive gear is smaller, please contact us—we have made custom replacements for various models and can reverse-engineer any gear/axle with an original sample.
